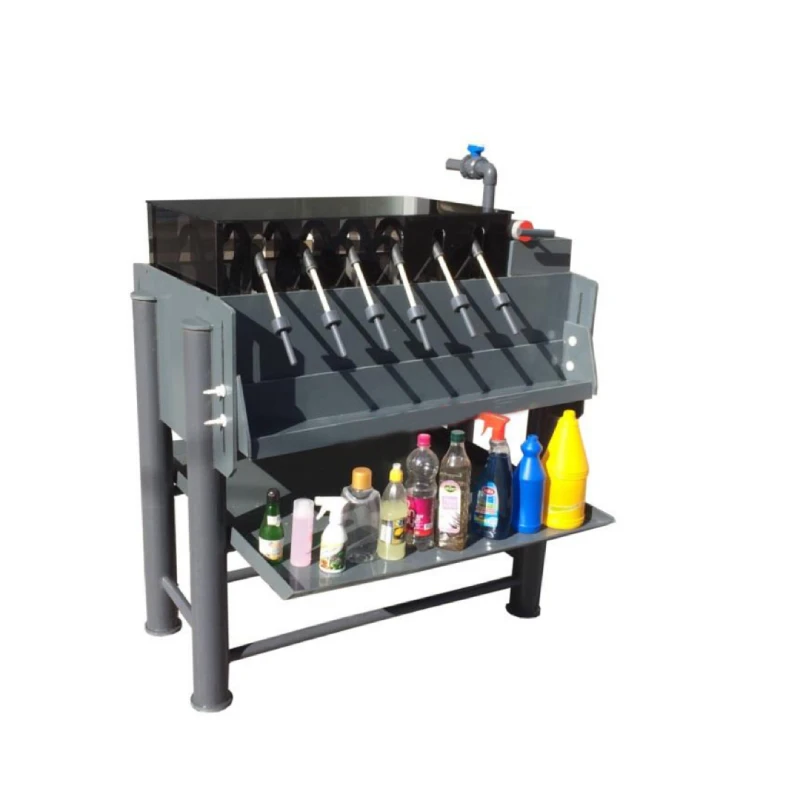

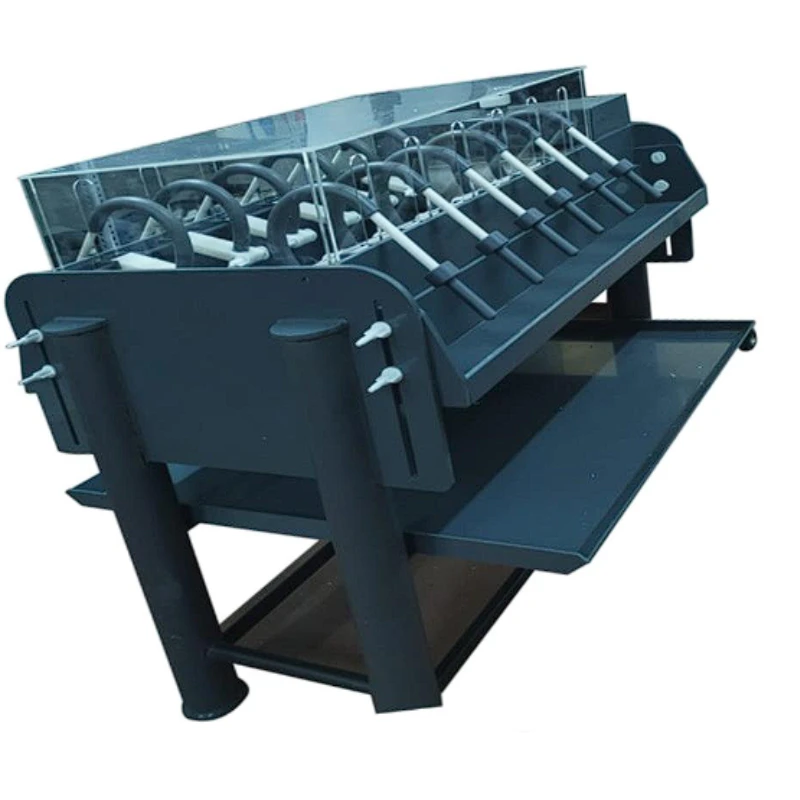

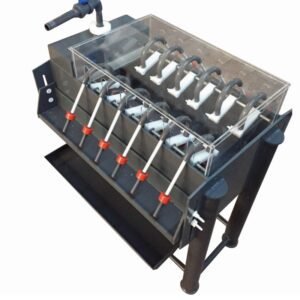

PVC Body Level Filling Machine
PVC Body Level Filling Machine
The Manuel liquid filling machine is designed to efficiently fill various types of liquids,including chlorine. Its body is constructed using PVC, which provides enhanced safety due to its high-grade materials.
• 6 + 6 Level Filling machine with dual filling capability
• Sturdy PVC body construction for durability
• Filling range : 200 ml – 5000 ml
• Mechanical float ball level sensor system
• Features a product emptying system
• Allows manual adjustment of bottle heights
• Tank is coated with a 5 ml plexiglass layer
• Equipped with a Hand Air Pomp for nozzle air evacuation
• PVC zonder (tank) thickness measures 25 mm
• Nozzle diameter is 16 mm
• Machine’s body has a thickness of 10 mm
• Dimensions (W x L x H): 80 x 112 x 128 cm
• Machine weight: 105 KG
